GM 4L60E Master Transmission Rebuild Kit (2004-2013)

In September Get 5% Off 4L60E Master Kits!!

Free Shipping!

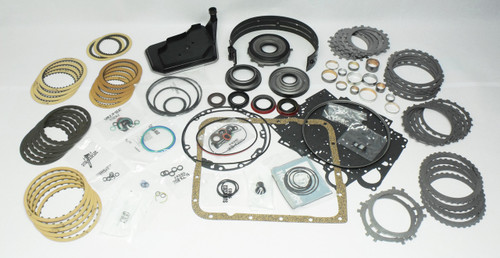

This high-quality 4L60E Master Rebuild Kit Contains:

• Precision International 4L60E Overhaul Kit (see below for full parts list)
• New high-grade molded rubber pistons
• Full 4L60E Steel Module by Raybestos Powertrain
• High Energy 4L60E Friction Module by Raybestos Powertrain
• Performance ProSereis 2-4 Band by Raybestos Powertrain
• 13-Piece Master Bushing Kit
• Deep Style Oil Filter

This 4L60E/4L65E Transmission Overhaul Kit with Molded Rubber Pistons includes the basic seals, gaskets, o-rings and filters necessary to rebuild GM 4L60E transmissions from 2004-2013.  When your transmission is rebuilt using an Overhaul Kit, manufactured in the United States by industry leader Precision International, it was overhauled using the highest quality transmission soft parts available on the market.

   Benefits of Precision International Overhaul Kits from GMTransmissionParts.com

• High Grade Material Construction.  Unlike other transmission kit manufactures, Precision International’s overhaul kits contain parts made from high quality rubber & fiber materials.
• Precision International Kits are made in the USA to superior quality standards, which ensure the parts you will receive meet or exceed the OEM specifications.  When your 4L60E/4L65E transmission is rebuilt using a Precision International overhaul kit it was rebuilt using the best parts in the industry.
• Precision International kits are packaged friendly for the rebuilder.  You won’t just be receiving a bag of parts when you order one of our kits.  The parts in our kits are well packaged, which means less time wasted searching for something you think should be there that isn’t.
• Always Stocked in Our Warehouse & Ready to Ship!

 Detailed Listing of Parts this 4L60E / 4L65E Overhaul Kit Contains

• Molded Rubber Piston Pack (PI # K33900-99)
• Upper Valve Body Gasket, 2001-UP (OEM # 24211920)
• Lower Valve Body Gasket, 2001-UP (OEM # 24211921)
• Valve Body Check Ball Set of 8 (OEM # 8631975)
• 1-2 Accumulator Housing Gasket (OEM # 24211603)
• Wedge Style Front Pump Seal (OEM # 24226315)
• Metal Clad Front Pump Oil Seal (OEM # 24202535)
• Oil Pan Gasket – Cork  (OEM # 8642360)
• Adapter Housing Metal Clad Seal for 4WD Colorado, Canyon (PI 33972 / OEM # 97287358)
• Pump Bolt O-Ring Kit (PI SUB-K3301 / OEM # 8654341)
• Electrical O-Ring & Filter Seal Kit (PI SUB-K3302)
• Accumulator Piston O-Ring Kit (PI SUB-K3303)
• Seal Kit (PI SUB-K3311)
• Pump Filters & Screens (PI SUB-K3312)
• 2-4 Servo Inner & Outer Housing O-Ring Kit (PI SUB-K3307 / OEM #’s 8642112 & 8647351)
• Transmission Cooler Seal & Output Shaft Snap Ring Kit (PI SUB-K33101A)
• Filter Hat Seal Kit (PI SUB-K3314L)
• Pressure Manifold Seal Kit (PI SUB-K3318)
• Force Motor & Shift Solenoid Filter Screen Kit (PI SUB-K33768 / OEM #’s 8683768 & 8683769)
• 2-4 Servo Spring Kit (PI SUB-K33799A / OEM # 8654391)
• TCC Solenoid Screen (PI SUB K-33575C)
• Teflon Sealing Ring Kit w/ 12 Rings (PI SUB-K33901F)
• Pump Outside O-Ring
• 4WD Extension Housing O-Ring
• Pump to Case Gasket (PI # 33702A)
• 2WD Extension Housing Oil Seal (PI # 8850A)
• 4L60E/4L65E Specific Rebuild Technical Sheets
  • Recommended Torque Specs
  • Bolt Information
  • Electrical Resistance
  • Valve Body Check Ball Locations
  • Solenoid Chart

Listing of Frictions in the Raybestos High-Energy Friction/Clutch Pack Contained in this Master Rebuild Kit

GMTransmissionParts.com Item Number: 1096

Raybestos Powertrain Part Number: RCP96-087

• (5) Forward Clutches with Grooves (OEM # 24232517)
• (2) Overrun Clutches (OEM # 8673253)
• (6) 3-4 High-Energy Clutches (OEM # 8654145)
• (5) Low – Reverse Clutches (OEM # 24216946)
• (4) Reverse Input Clutches (OEM # 8663080)

2-4 Band, Raybestos, Pro Series High Energy, 700R4/4L6OE/4L65E (1987-Up) Contained in this 4L60E Master Rebuild Kit

With a Pro Series High Energy 2-4 Band for a 700R4/4L60E/4L65E made by Raybestos, you know you have nothing to worry about.  The High Energy friction coating has been proven to wear less and last longer than the OEM 2-4 band.  This means you can rest easy knowing that inferior parts aren't going to cut your rebuilt transmissions life short.  The Pro Series 2-4 Band paired with a Corvette Servo Assembly (by OMS, LLC, item # 1091), makes for a high performance combination that will speed your shifts up dramatically!

Please Contact Us if You Have Any Question on This Kit!
